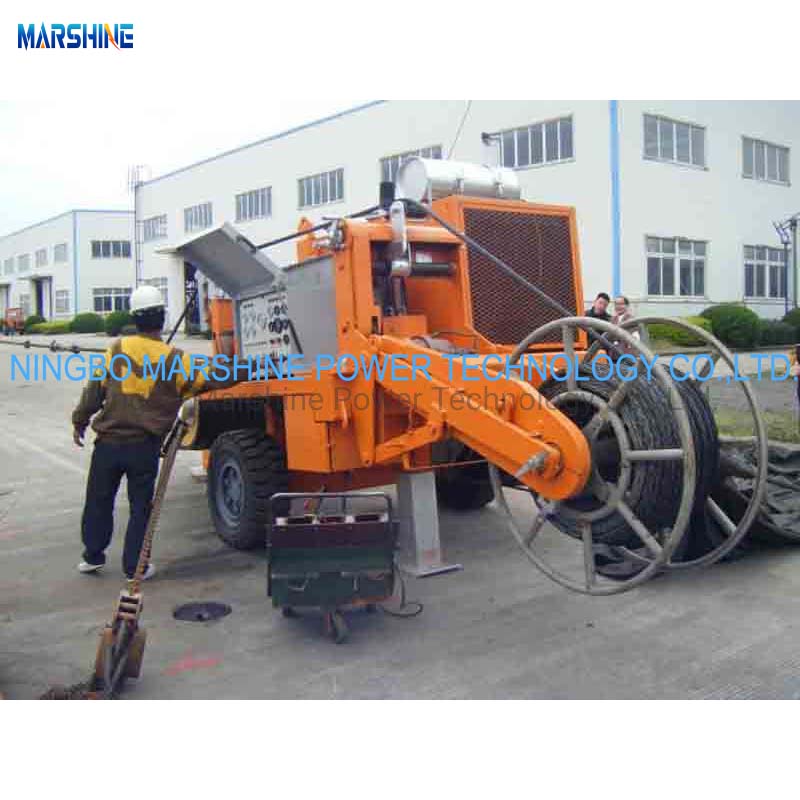

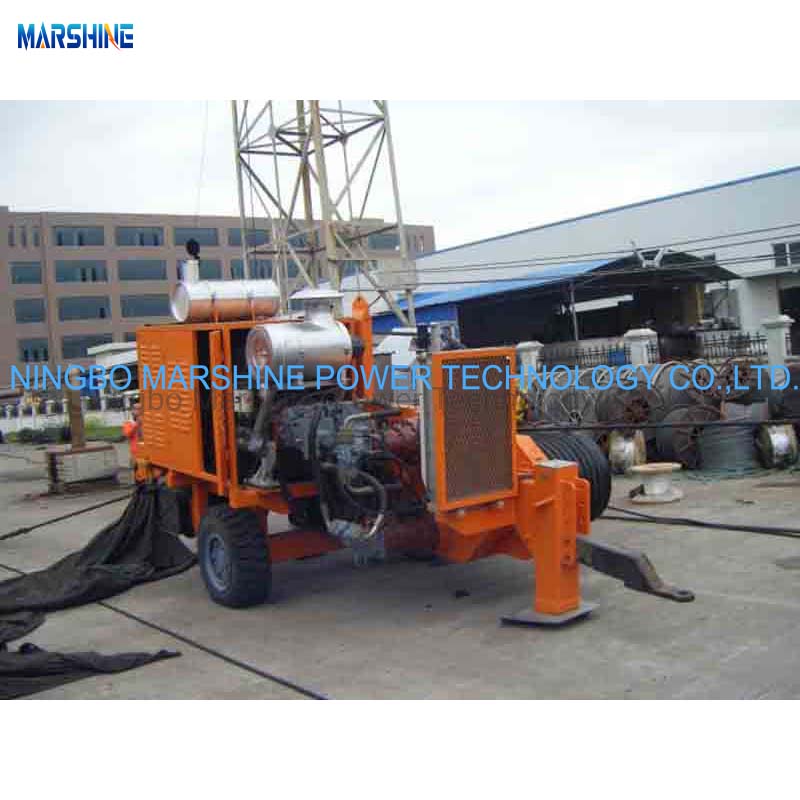

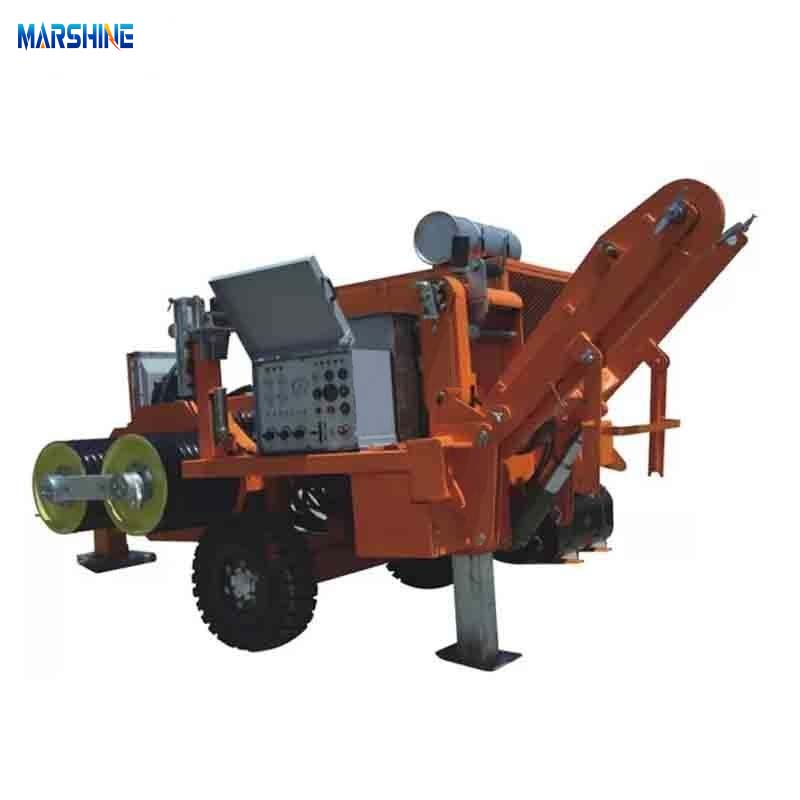

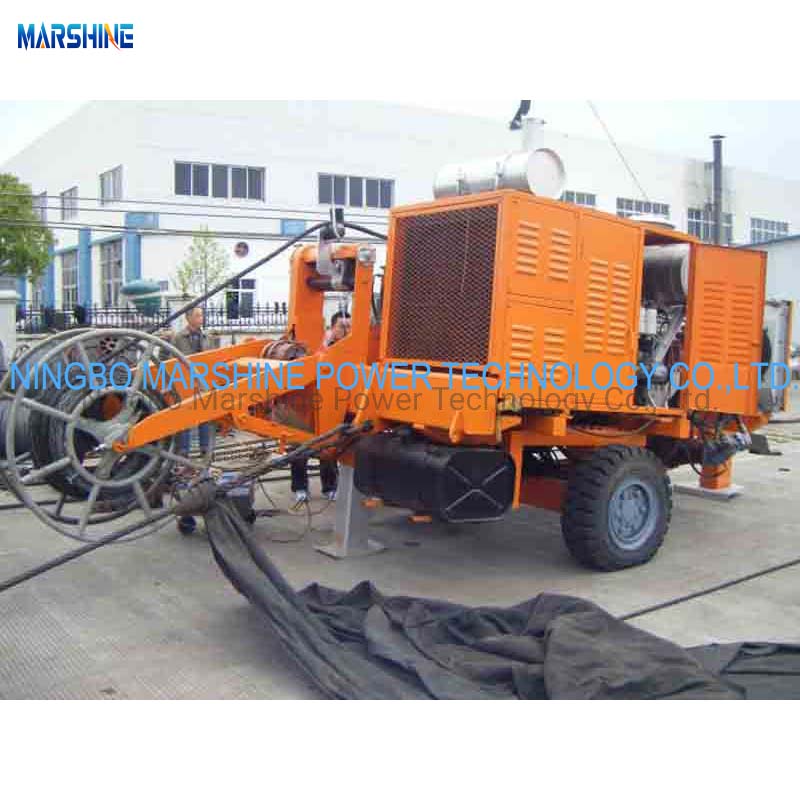

Been built for utility giants, renewable energy developers, and heavy industrial contractors, the MARSHINE Line Stringing Hydraulic Cable Puller 25T sets a new benchmark in large-scale cable and conductor installations. Designed to tackle the most formidable challenges, this machine combines brute-force hydraulic capacity with intelligent automation, delivering flawless performance for underground, aerial, and subsea projects under extreme loads of up to 25 tons (250 KN).
Product Parameter
| Model | SA-YQ250 |
| Maximum pull force (kn) | 250 |
| Continuous pull force (kn) | 200 |
| Maximum speed(km/h) | 5 |
| Bull wheel bottom of groove diameter(mm) | Φ820 |
| Bull wheel grooves number | 10 |
| Maximum suitable steel rope diameter(mm) | Φ32 |
| Maximum through connector diameter(mm) | Φ80 |
| Engine power/speed(kW/rpm) | 261/2100 |
| Dimensions(mm) | 5750*2350*2750 |
| Weight(kg) | 9000 |
Product Feature
25 Ton Hydraulic Power
Our MARSHINE Line Stringing Hydraulic Cable Puller 25T owns industry-leading hydraulic system generates colossal pulling force for ultra-heavy cables (up to 2,500 mm²copper/aluminum), ideal for high-voltage transmission lines, offshore wind farm interconnects, and subsea pipelines.
Smart Automation
Integrated PLC control with real-time load monitoring and adjustable speed (0–18 m/min) ensures precise tension management, eliminating cable overstress or slippage.
Heavy-Duty Build
Reinforced alloy steel frame with anti-corrosion coating withstands saltwater, extreme temperatures (-35℃ to +65℃), and abrasive industrial conditions.
Safety Redundancy
Dual overload protection, emergency braking, and anti-reverse locks comply with ISO 4309, CE, and IEC 60204 safety standards.
Product Application
Power Transmission
Installing high-voltage overhead lines or underground cables across rugged terrain.
Offshore Wind Farms
Our MARSHINE Line Stringing Hydraulic Cable Puller 25T is deploying subsea export cables in deep-water projects.
Oil & Gas
Pulling heavy umbilicals and pipelines in coastal, desert, or Arctic zones.
Urban Megaprojects
Metro rail electrification, tunnel boring machine (TBM) cable feeds, and urban grid upgrades.
Product Details
As a machine redefines heavy-duty installations with its fusion of raw power, smart automation, and unyielding durability, our MARSHINE Line Stringing Hydraulic Cable Puller 25T can be a general solution for the cable installation construction.
Electronically Control: Our system features a fully electronically controlled engine for optimal performance and efficiency.
Stepless Traction Force: Users benefit from stepless and adjustable traction force and speed, with an intuitive display for easy monitoring.
Presetable Traction Force: The maximum traction force can be preset, and automatic overload protection is included for added safety.
Automatic Braking: We've integrated a pressure loss automatic braking function to ensure safe operation in the event of engine stall or system pressure loss.
Clamping Device: The hydraulic traction rope clamping device simplifies the process of replacing the steel wire rope disc, enhancing efficiency.

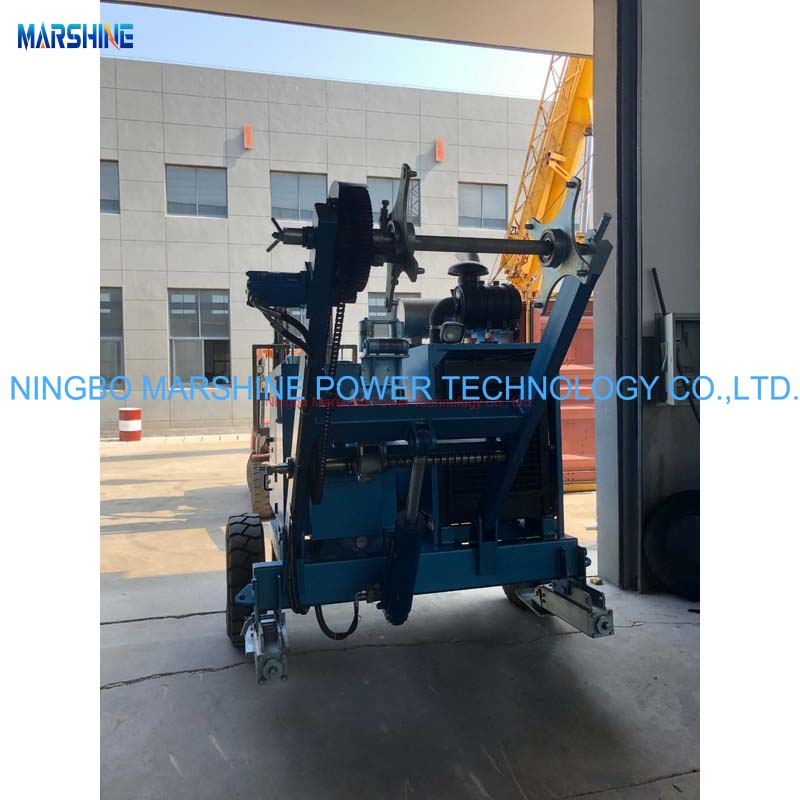

Automatic Winding Device: With the automatic winding device for steel wire rope, our system provides automatic rope arrangement and facilitates loading and unloading, further enhancing convenience and efficiency.
